SPECIFICATIONS

Special Features: Bluetooth

Brand Name: kebidu

Item Type: Code Readers & Scan Tools

Hardware Version: V2.1 ELM327

Software Update: Yes

Hign-concerned Chemical: None

Software Version: Bluetooth OBD2 V2.1

Certification: UL

Certification: none

Language: Arabic

Language: czech

Language: Denish

Language: DUTCH

Language: English

Language: finnish

Language: FRENCH

Language: german

Language: Greek

Language: hungarian

Language: Italian

Language: japanese

Language: Korea

Language: Norwegian

Language: POLISH

Language: Portuguese

Language: Russian

Language: Slovenia

Language: Spanish

Language: SWEDISH

Language: THAI

Language: Turkish

Choice: yes

semi_Choice: yes

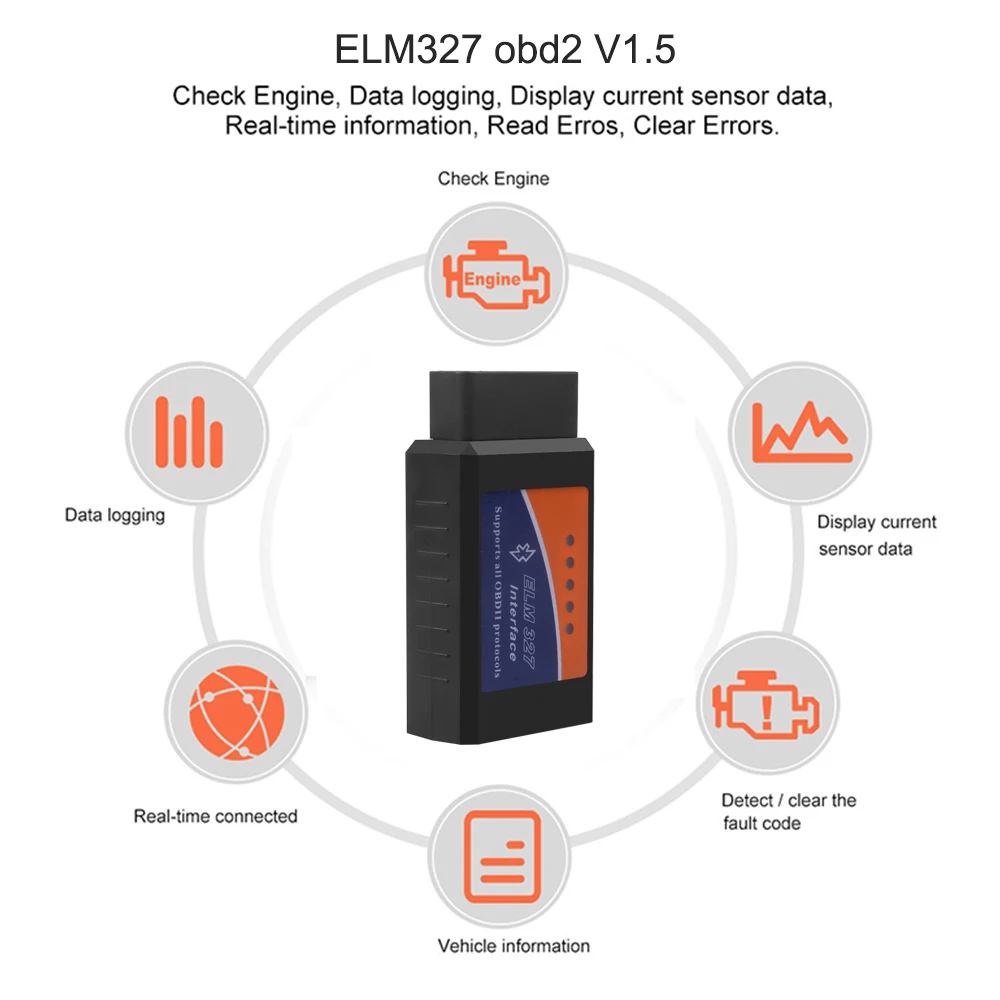

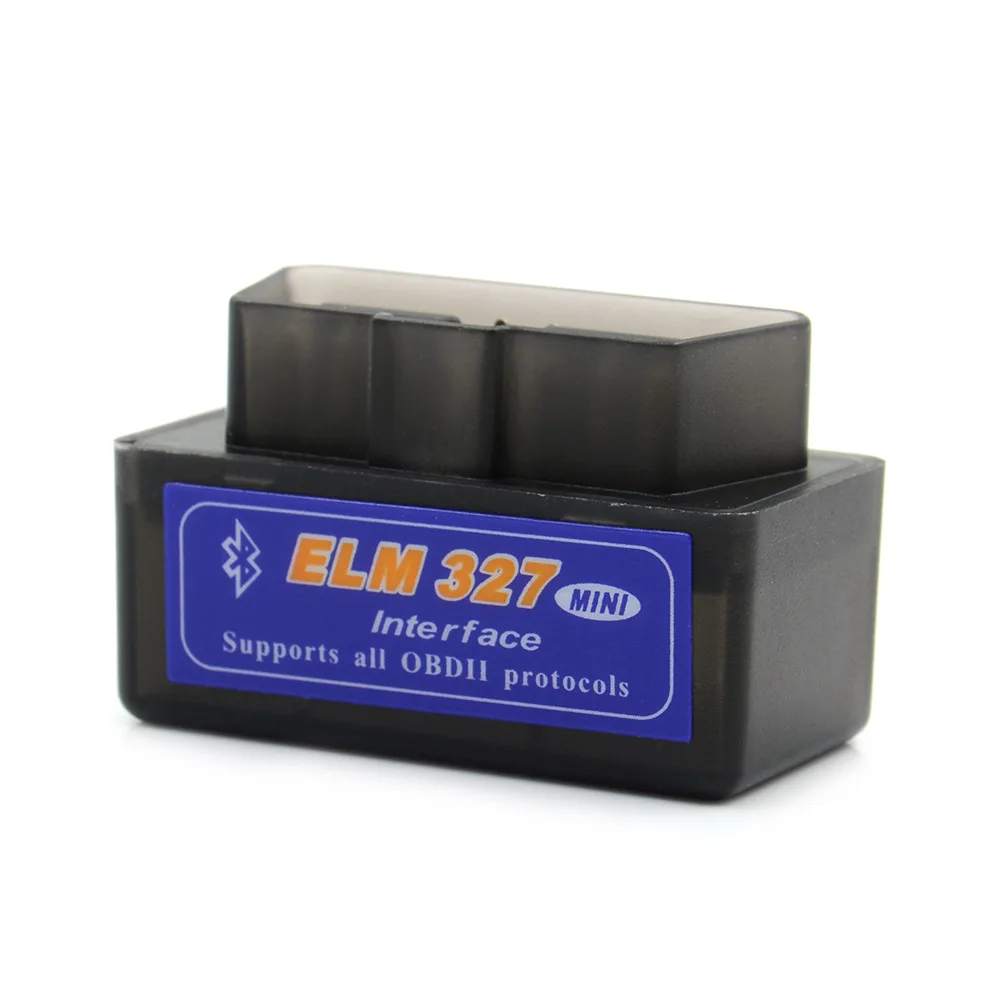

V1.5 Mini Bluetooth ELM327 OBD OBDII Protocolos OBD2 Car Diagnostic Scanner

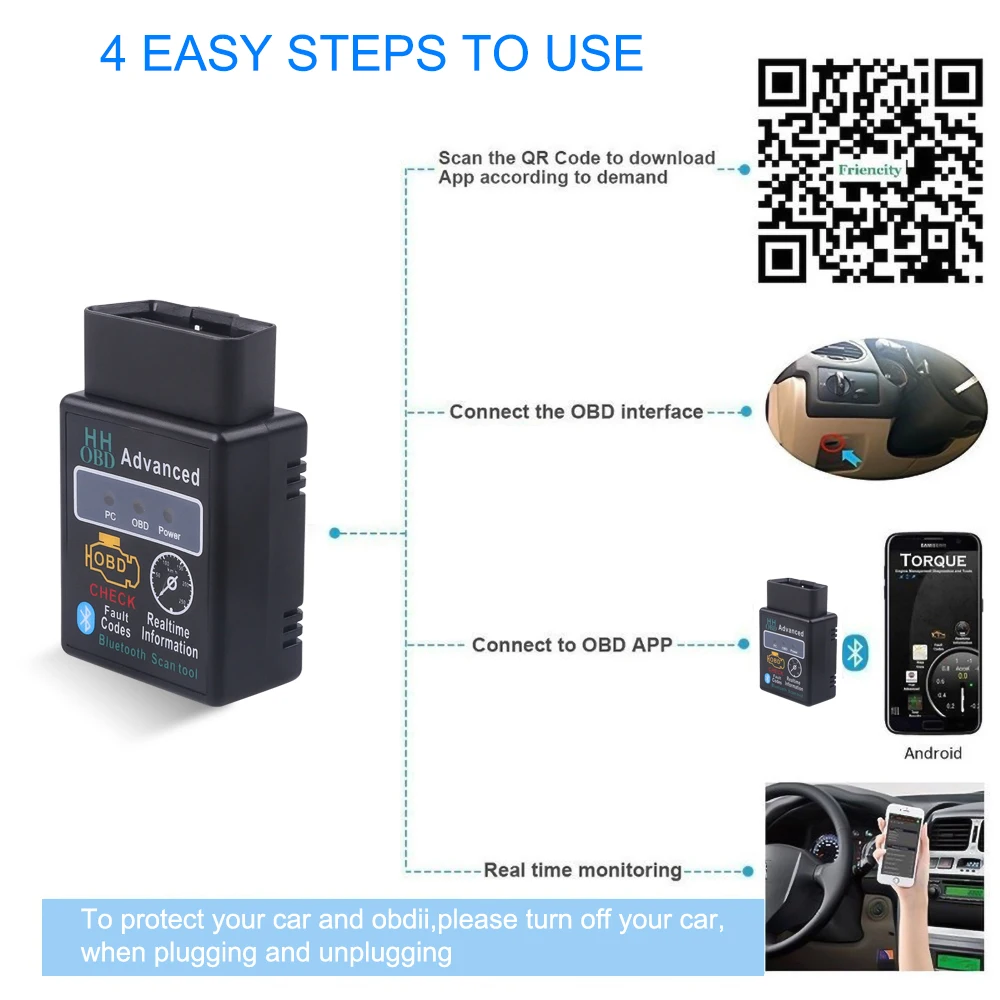

Steps for usage:

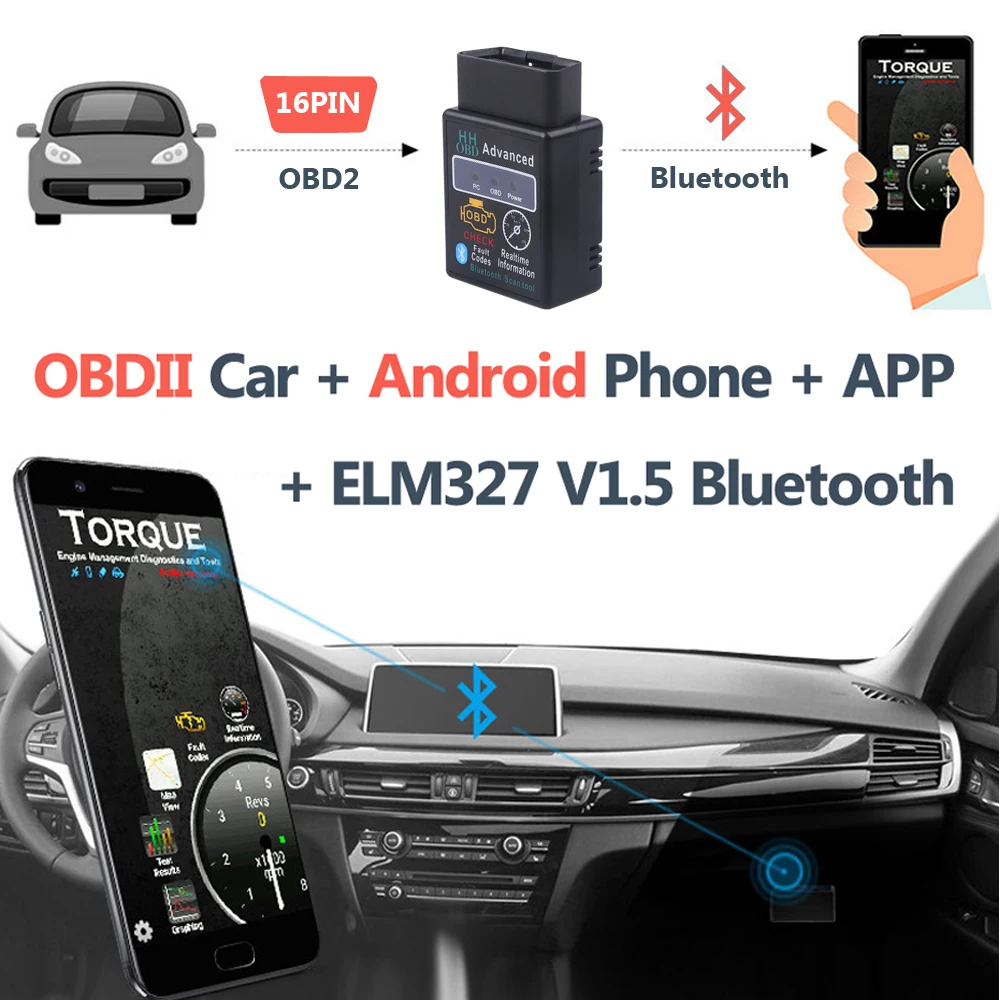

Insert the product directly into the car OBD interface and connect to the mobile app: TORQUE

(CD will not included because the damage easily ). Customers can download the software by yourself. (the software supports computers and Android phones, and does not support Apple phones). Software address www.cos8000.com

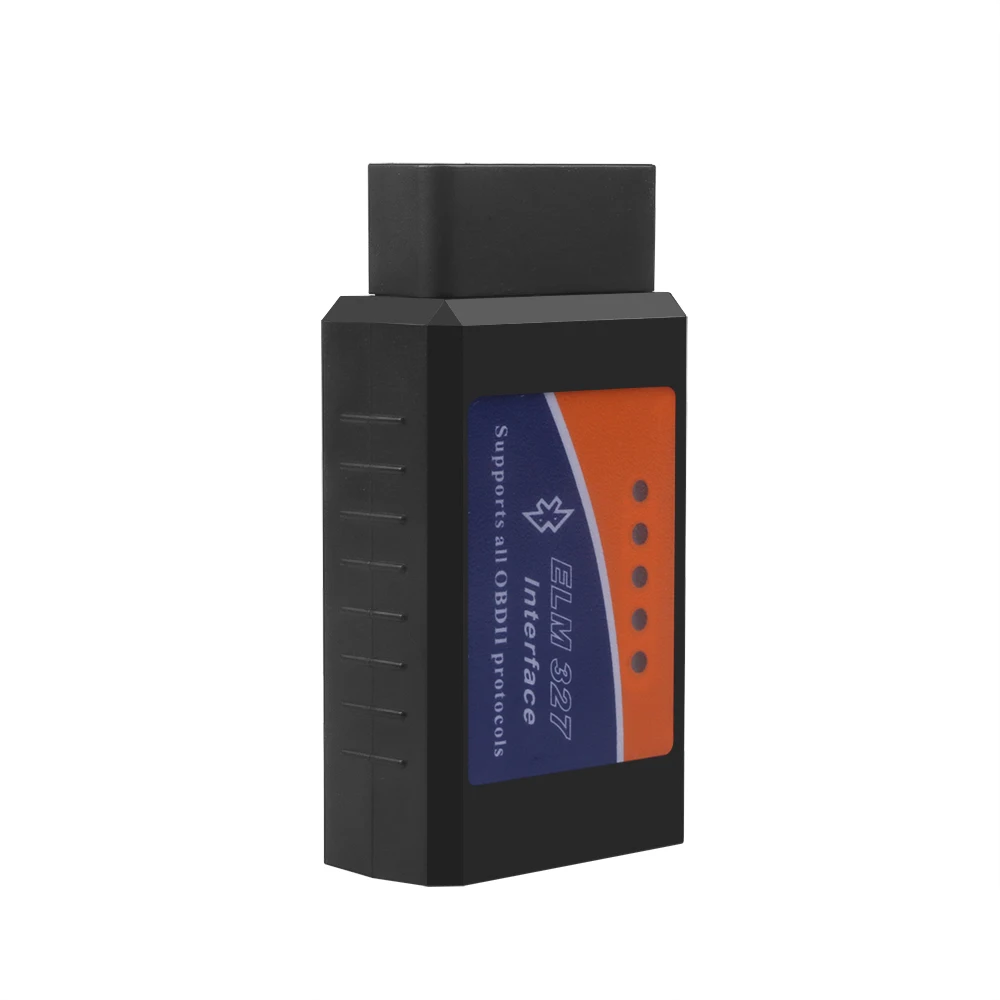

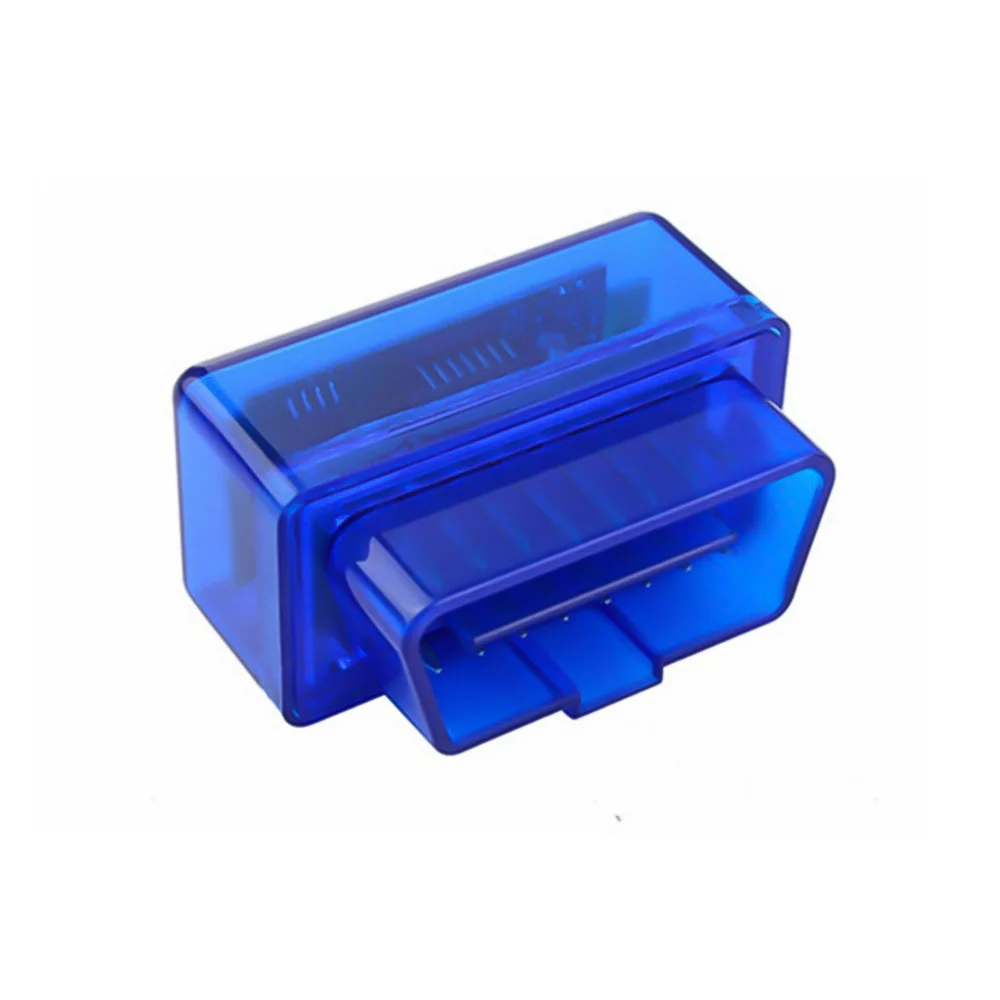

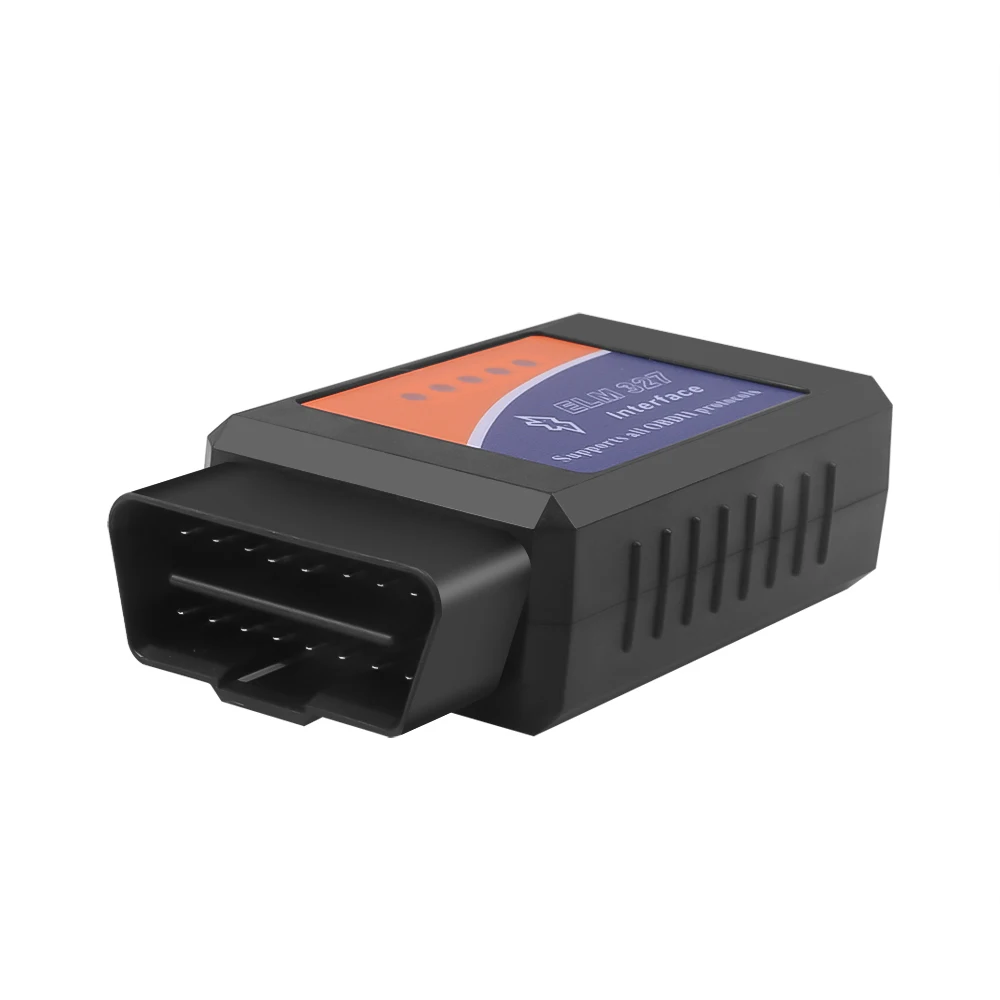

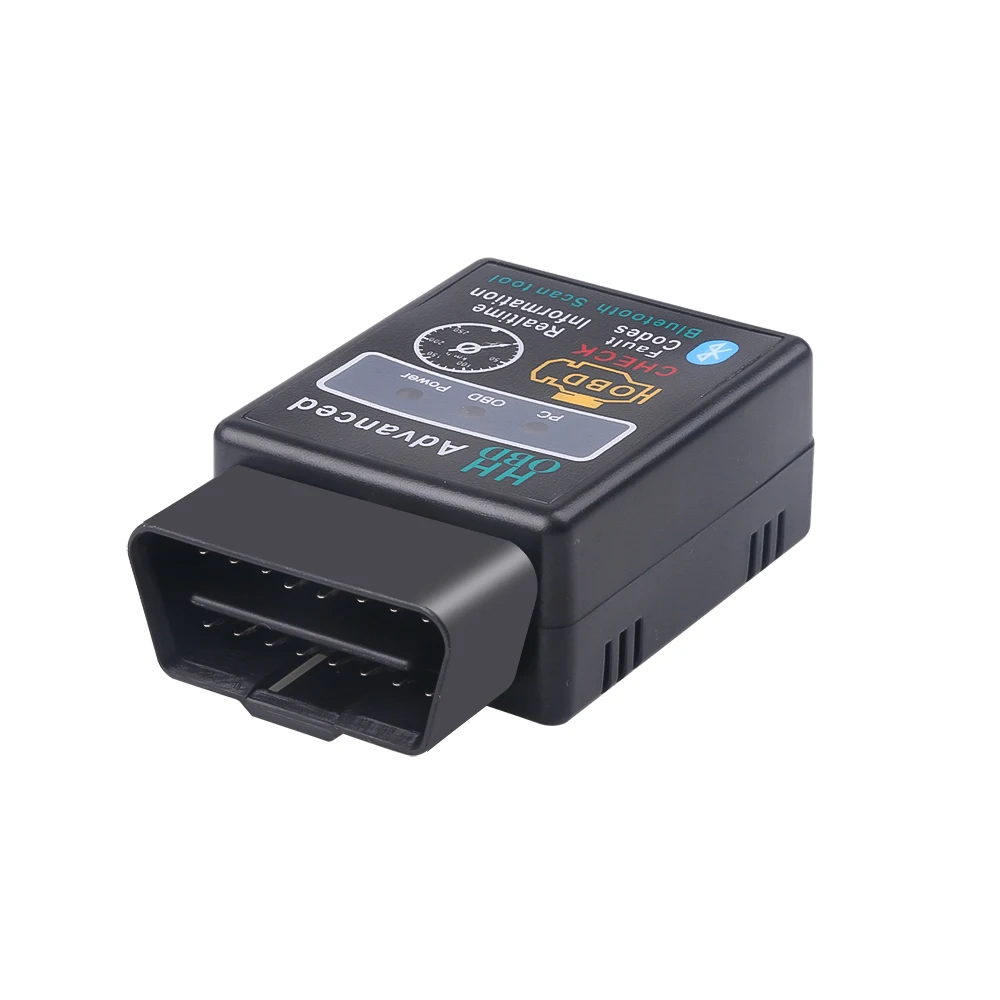

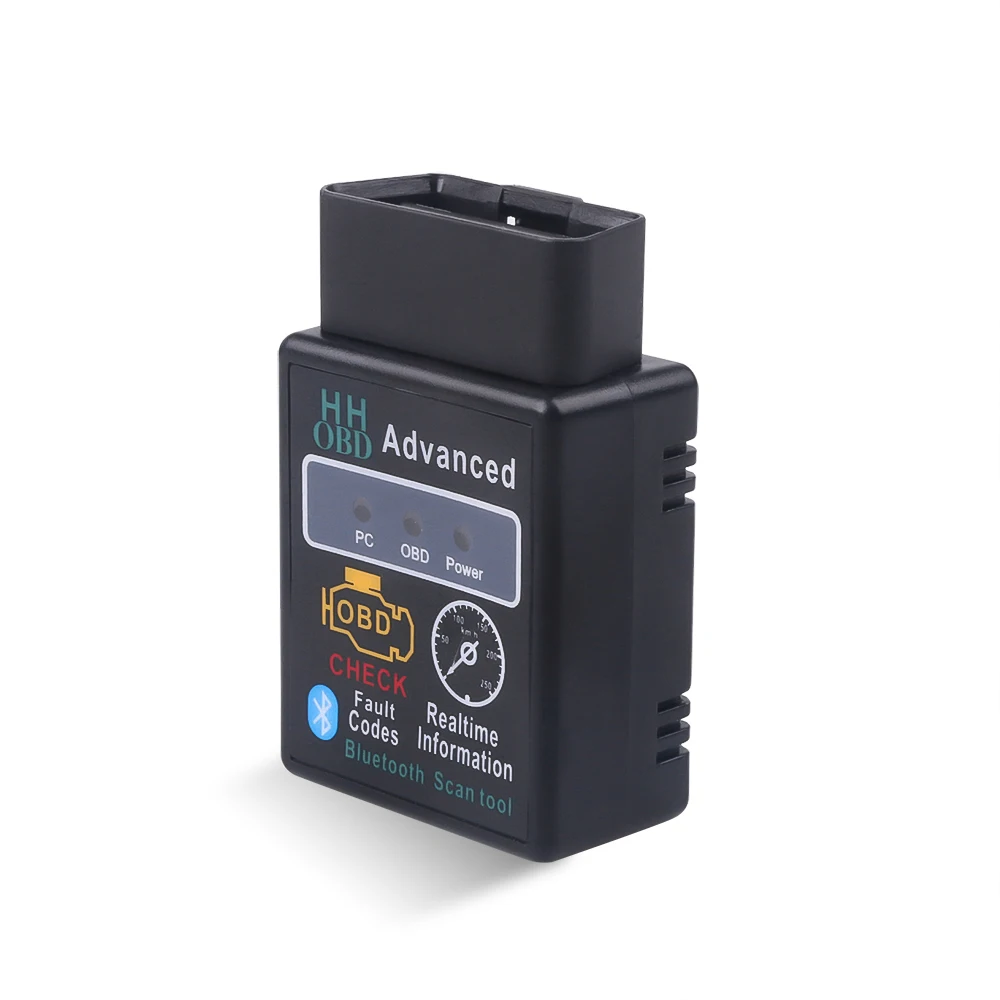

Super MINI ELM327 Bluetooth V2.1 for Android Torque OBD 2 Interface OBD2 Scanner ELM 327 Support OBDII Protocols code reader

Highlights:

The newly developed wireless scan tool.

It supports almost OBD-II protocols.

It is the latest version 2.1 & Version 1.5

Bluetooth connection, no Batteries, Cables, or Switches.

Wireless (Bluetooth) 5~ 10 meters

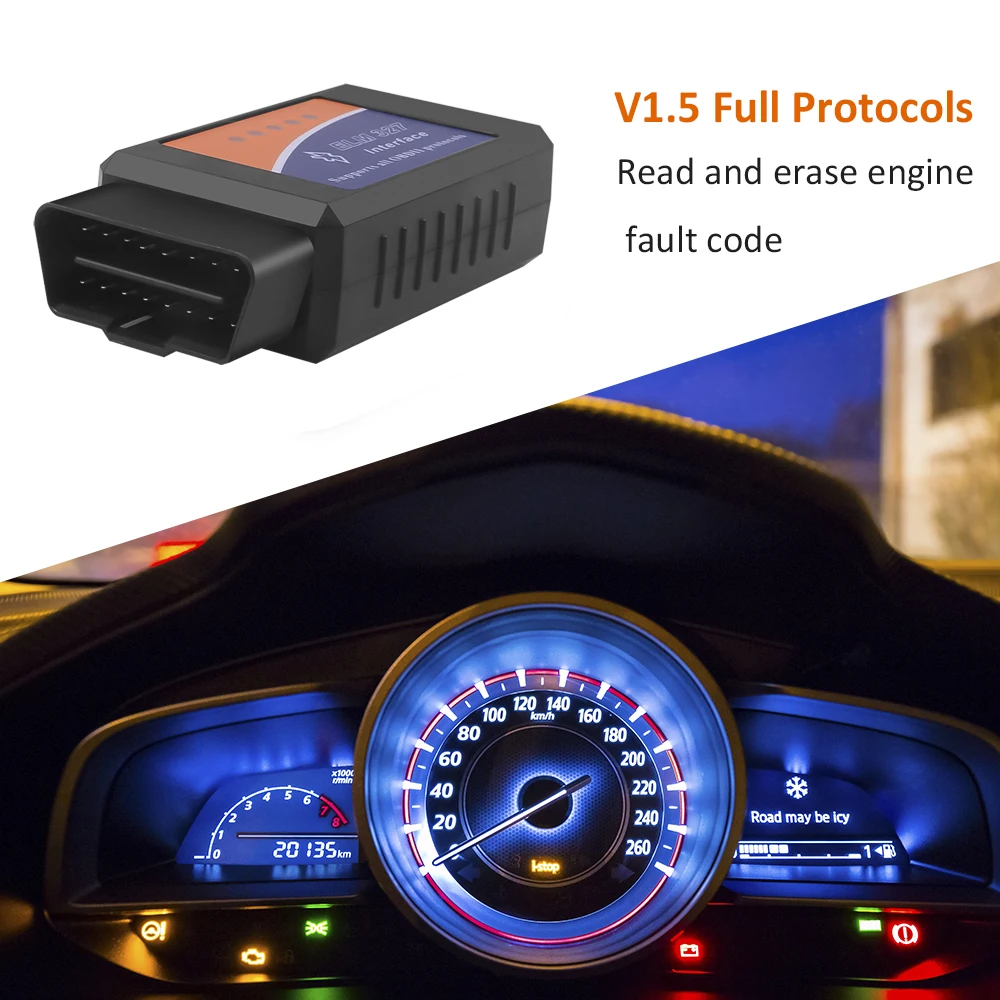

Retrieve Fault Codes (DTCs) and clear Check Engine lights.

Can also be used with a PC with a Bluetooth Card.

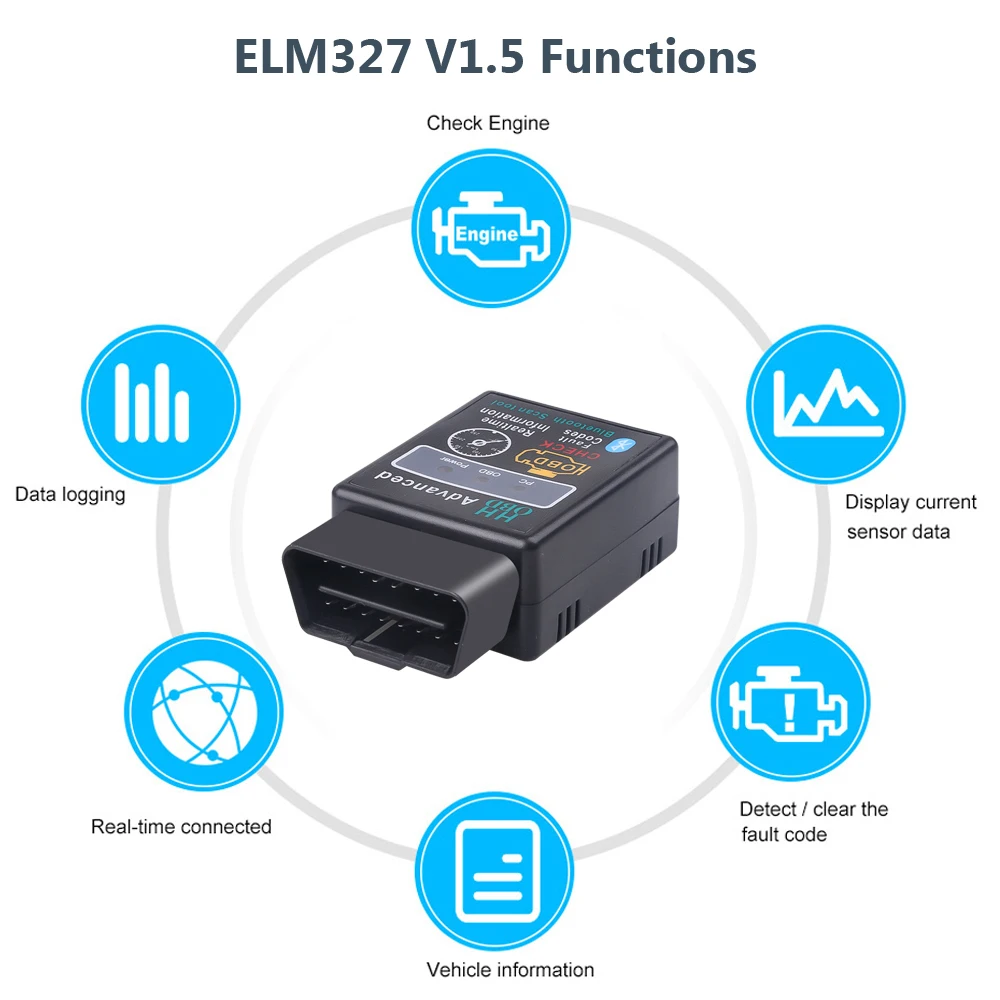

Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

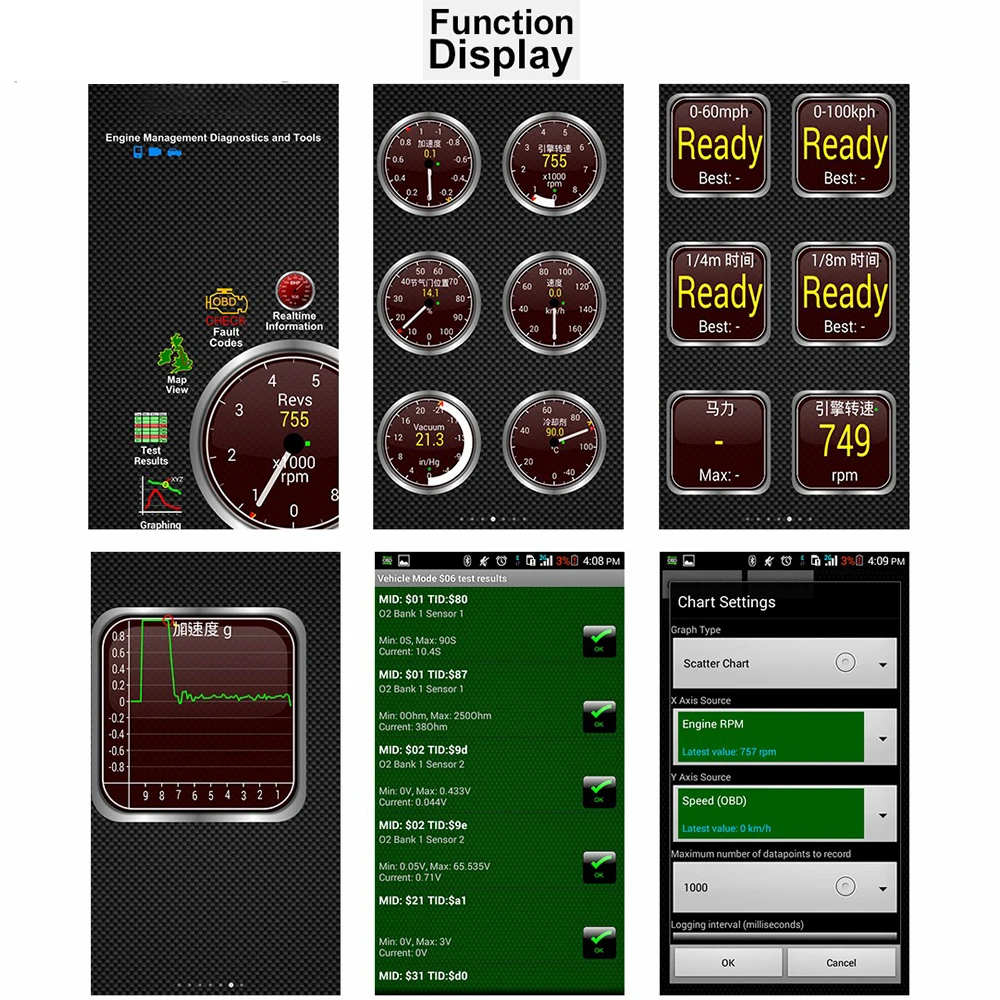

Display current sensor data, including:

1.Engine RPM

2.Calculated Load Value

3.Coolant Temperature

4.Fuel System Status

5.Vehicle SpeedV2.1

6.Short Term Fuel Trim

7.Long Term Fuel Trim

8.Intake Manifold Pressure

9.Timing Advance

10.Intake Air Temperature

11.Air Flow Rate

12.Absolute Throttle Position

13.Oxygen sensor voltages/associated short term fuel trims

14.Fuel System status

15.Fuel Pressure

Features:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

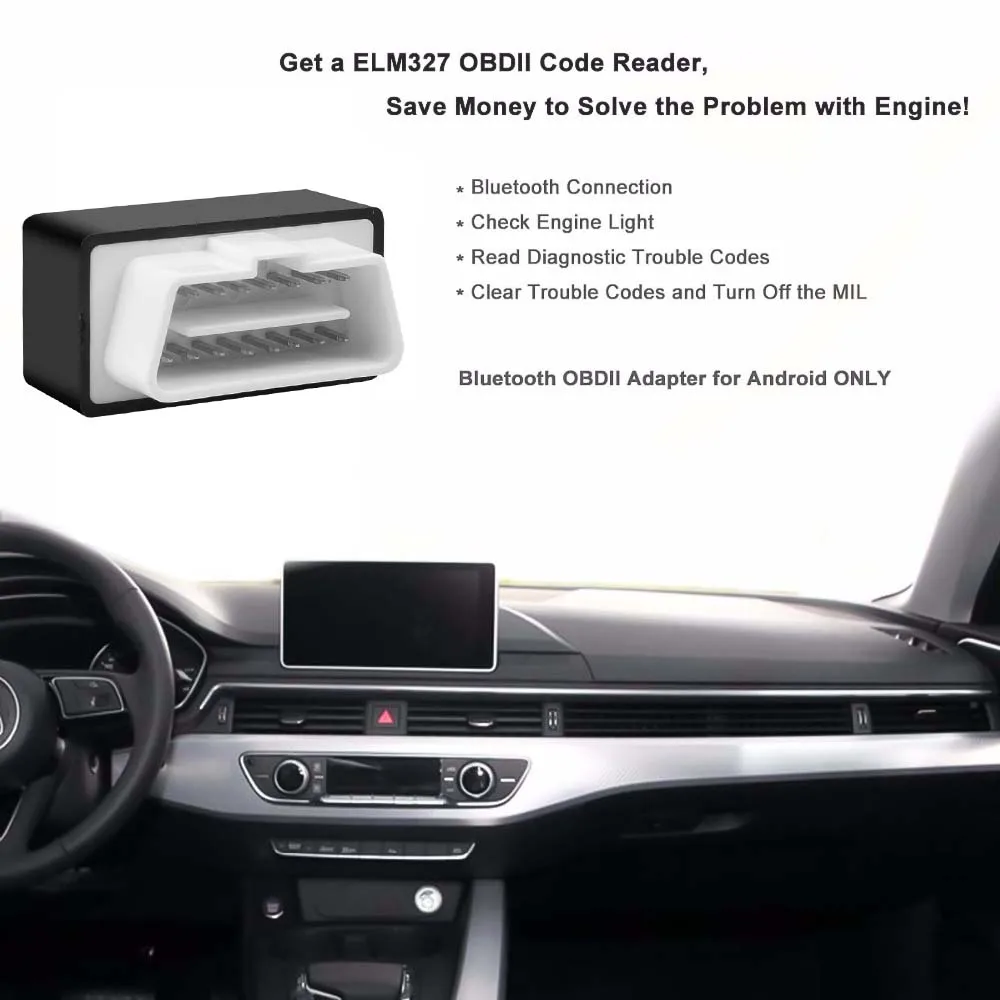

Clear trouble codes and turn off the MIL (''Check Engine'' light)

Set the maximum number of responses to obtain

Remove spaces from ECU responses (to speed data transmission)

Store a unique identifier in EEPROM

Set the CAN mask and filter with one command

Easily switch between variable and fixed CAN message lengths

Send CAN remote frames (RTRs)

Multi-Protocol Support:

1. ISO9141-2(5 baud init, 10.4Kbaud)

2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

3. ISO14230-4 KWP (fast init, 10.4 Kbaud)

4. ISO15765-4 CAN (11bit ID, 500 Kbaud)

5. ISO15765-4 CAN (29bit ID, 500 Kbaud)

6. ISO15765-4 CAN (11bit ID, 250 Kbaud)

7. ISO15765-4 CAN (29bit ID, 250 Kbaud)

A.SAE J1939 CAN (29bit ID, 250*Kbaud)

B.USER1 CAN (11*bit ID, 125*Kbaud)

C.USER2 CAN (11*bit ID, 50*kbaud)

*default settings (user adjustable)

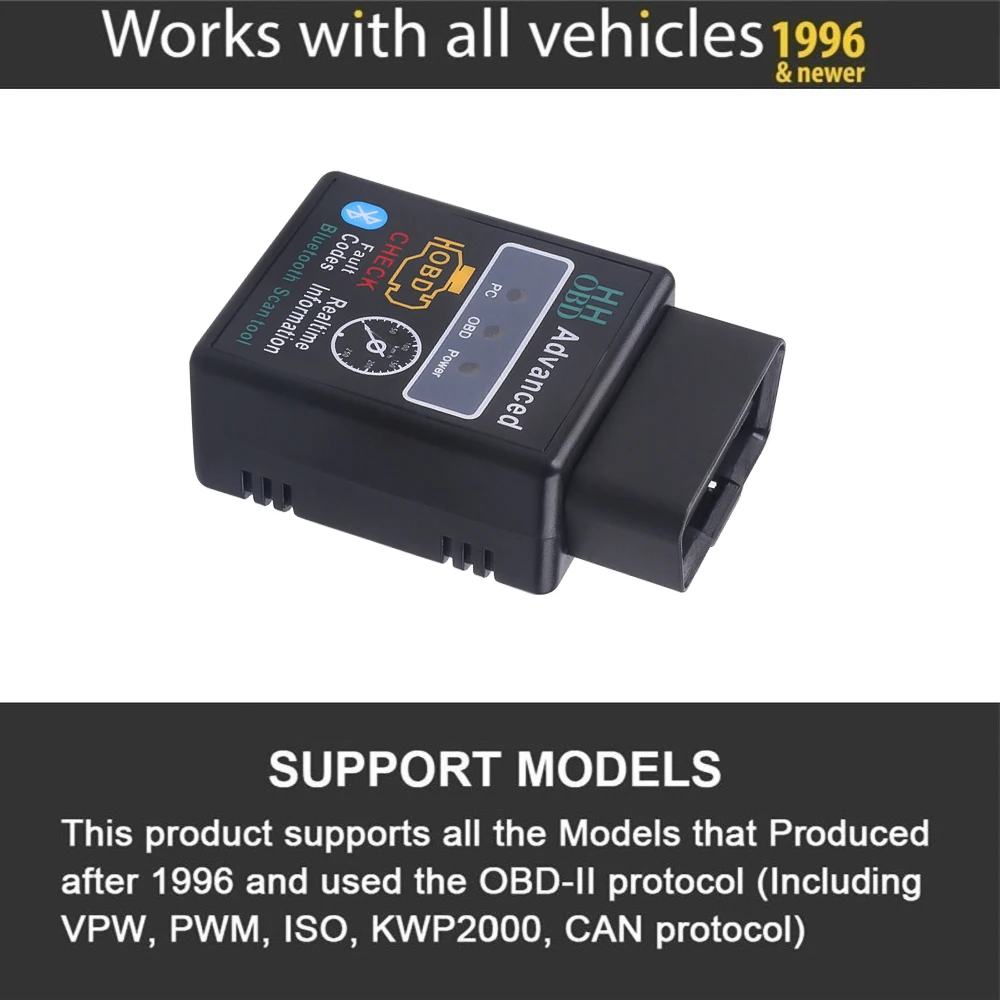

Vehicle Coverage:

Works on most of OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles .

If you mind this,please do not place order.Thanks.

For Alfa Romeo/ For Audi/ For Bentley/ For BMW/ For Cadillac/ For C-hevrolet/ For Chrysl/For C-itroen/ For Daewoo/ For F-iat/ For Ford/ For GM/ For Hod/ For Hyundai/For Isuzu/For Jaguar/ For Jeep/ For Kia/ For Lad over/ For Lexus/ For Mazda/ For Mercury/ For Mini/ For Nisan/ For Mitsubishi/ For Opel/ For Peugeot/ For Posch/ For Re .nault/ For Rover/ For Saab/ For Seat/ For Skoda/ For Toyota/ For Vauxhall/ For Volvo/ For VW

CAR MODEL

For your information:

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant

Software Included:

Scantool_net113win (Full Version)

EasyOBDII V2.2 (Free Version)

OBD2Spy (Demo Version)

Scan Master-ELM (Demo Version)

wOBDCRAZY (Demo Version)

This hardware can match much other software still! But most of them are not free!

Works for Windows98/ME/2000/XP/Vista & 7!

This tool does not match abs and airbag system!

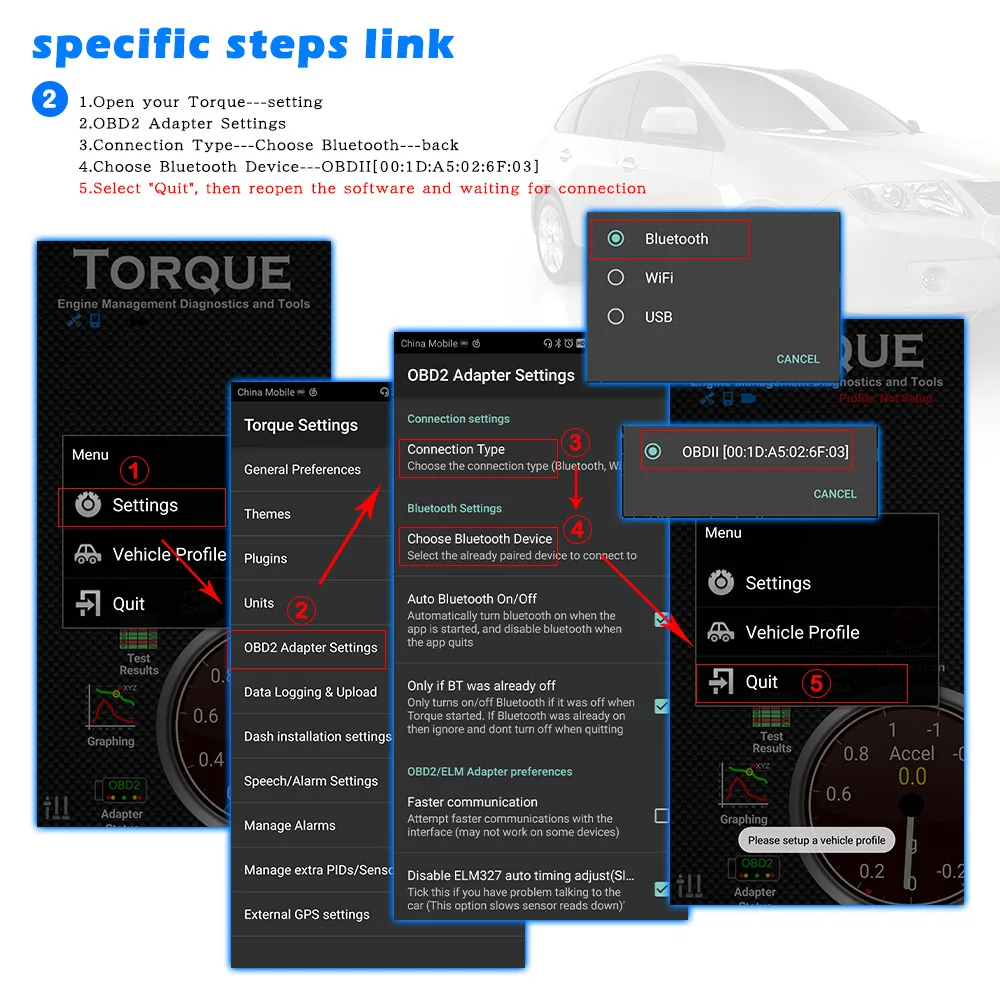

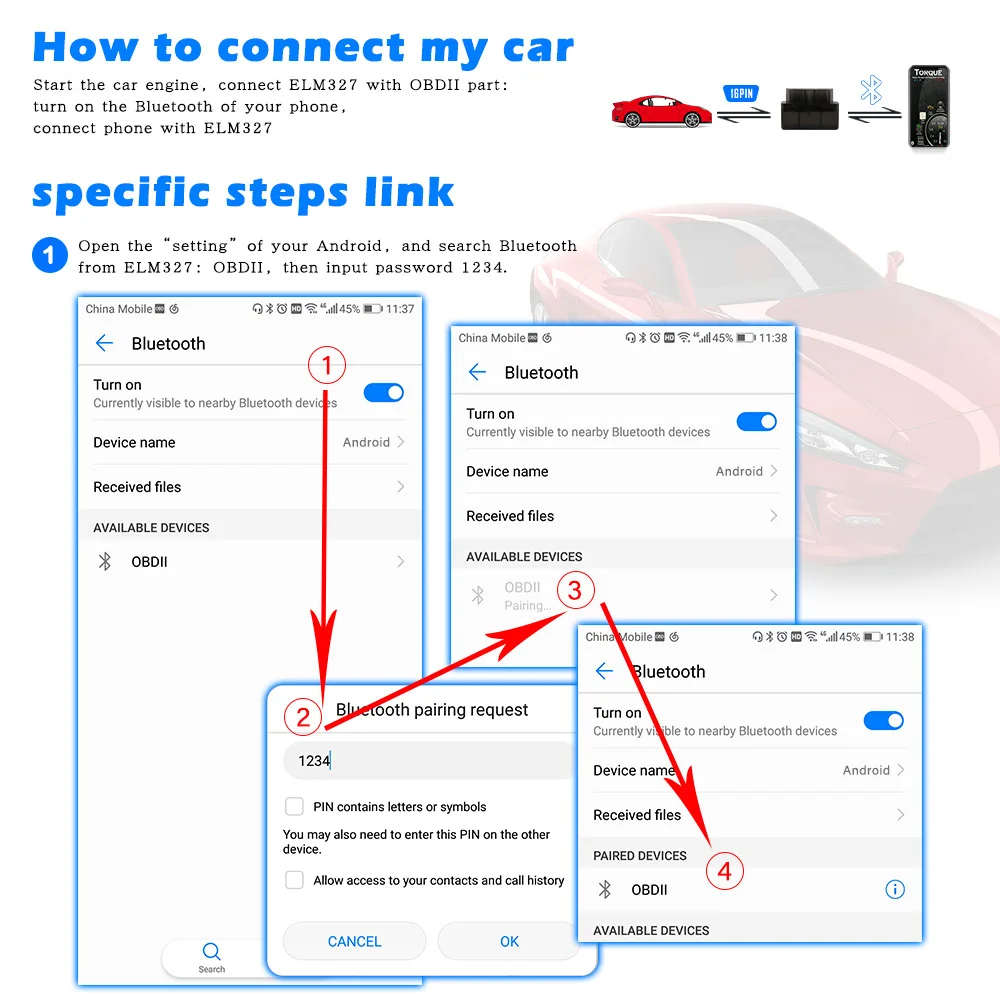

How to connect with the Phone and Software?

1.Android phone system requirement: Android 4.0-4.4 or higher

ANDROID

2.Software Installation: After insertion of ELM327 Install APP:Install---Continuous click ''Next'' continue the next installation---Click ''Done'' Install software

INSTALL

3.Connect Bluetooth:

1)Turn on the Bluetooth switch

2)Find ''OBDII'' and connect it,the password is: 1234 or 0000

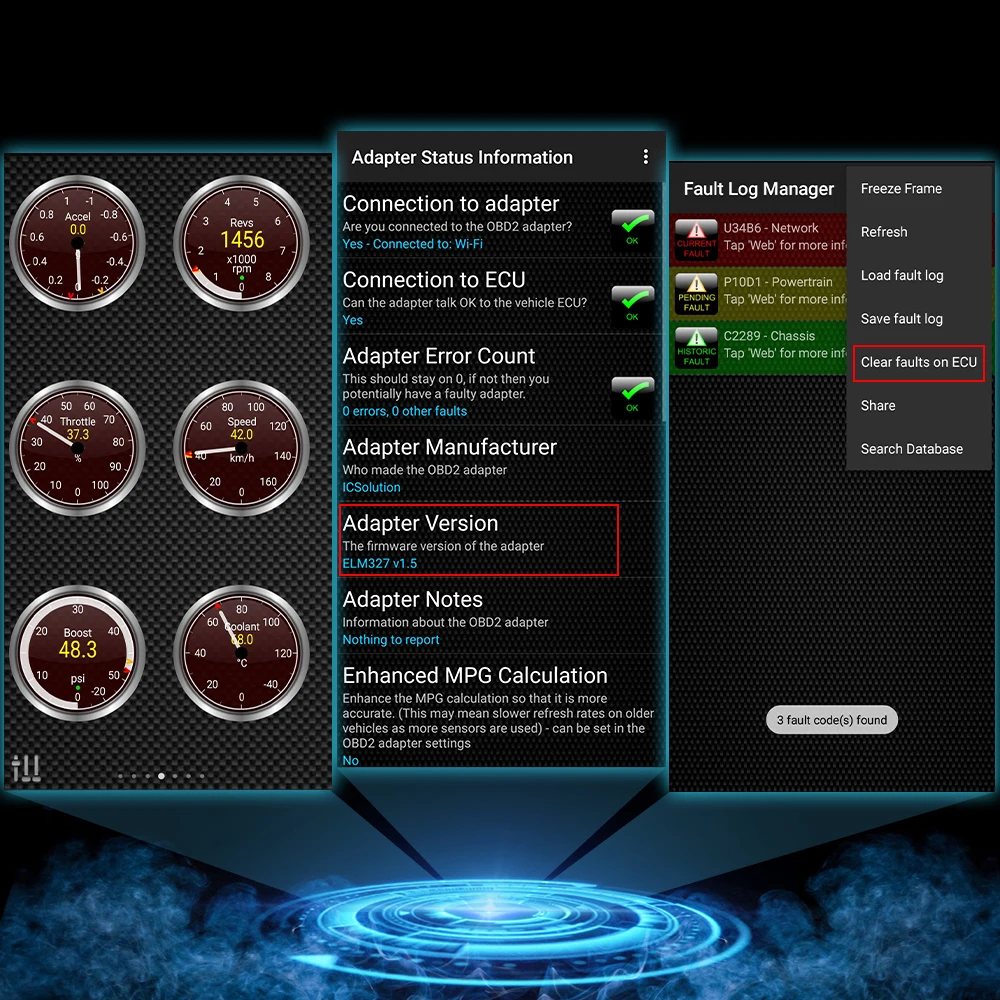

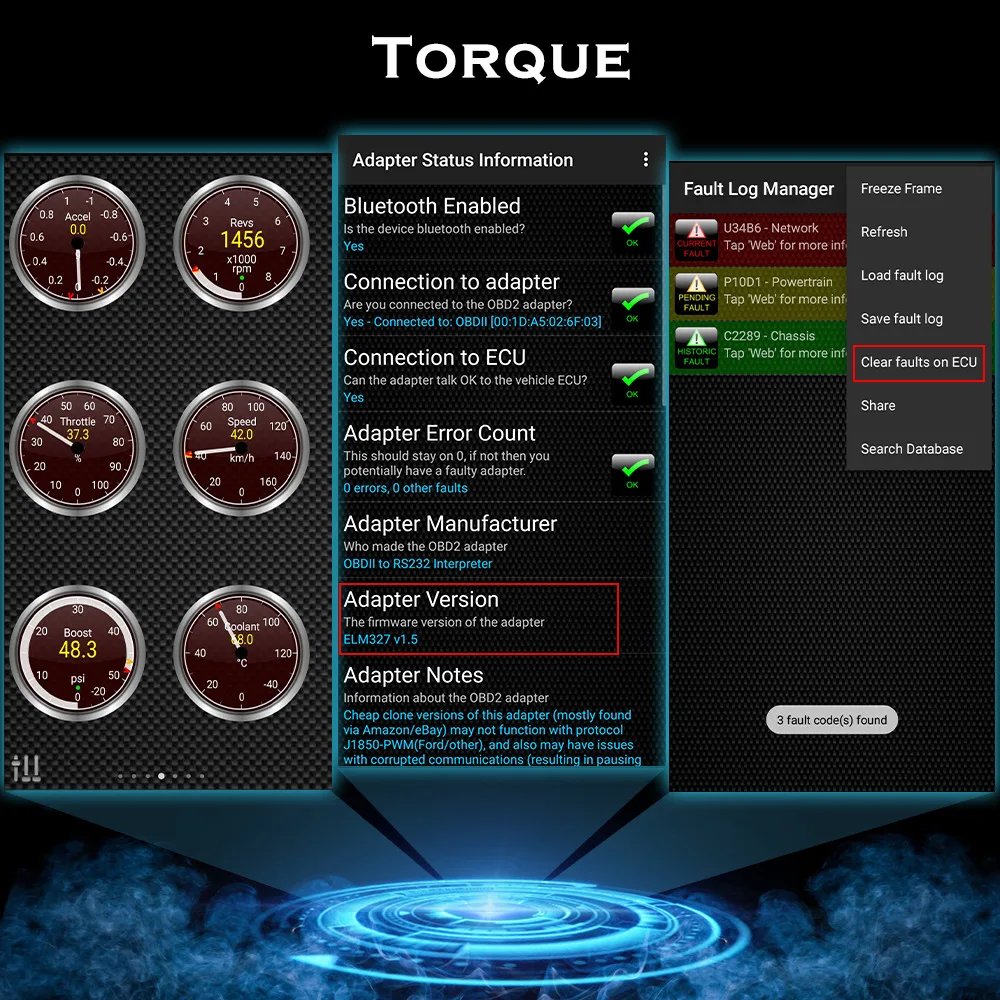

3)Enter the Torque,and set the connection way:Bluetooth,then Choose Bluetooth Device: OBDII elm327

Connection Failure selfcheck on phone:

It is based on bluetooth 2.0,can't support IOS (bluetooth 4.0).Viecar 4.0 supports Android and IOS.

Please use Android System V4.0 to latest version, and so on.

1.Car Module is not supported.

2.Engine is not ignited.

3.You need confirm the connection way as below.

Click Menu button setting bluetooth Connection:

Exit Torque,and re-run the software.Successful connection.

Specifications:

Type: code readers & scan tools

Output protocol: bluetooth

Material : plastic

Voltage: 12V

Current: 45mA

Wave frequency: 38400Hz

Applicable scope: 5-10m/ 16.4-32.8ft

Item size: 4.7 * 2.3 * 3.1cm/ 1.8 * 0.9 * 1.2in

Item weight: 21g/ 0.7oz

Total weight: 34g/ 1.2oz

Packing List

1*OBD2 Bluetooth Diagnostic （CD is not included）
